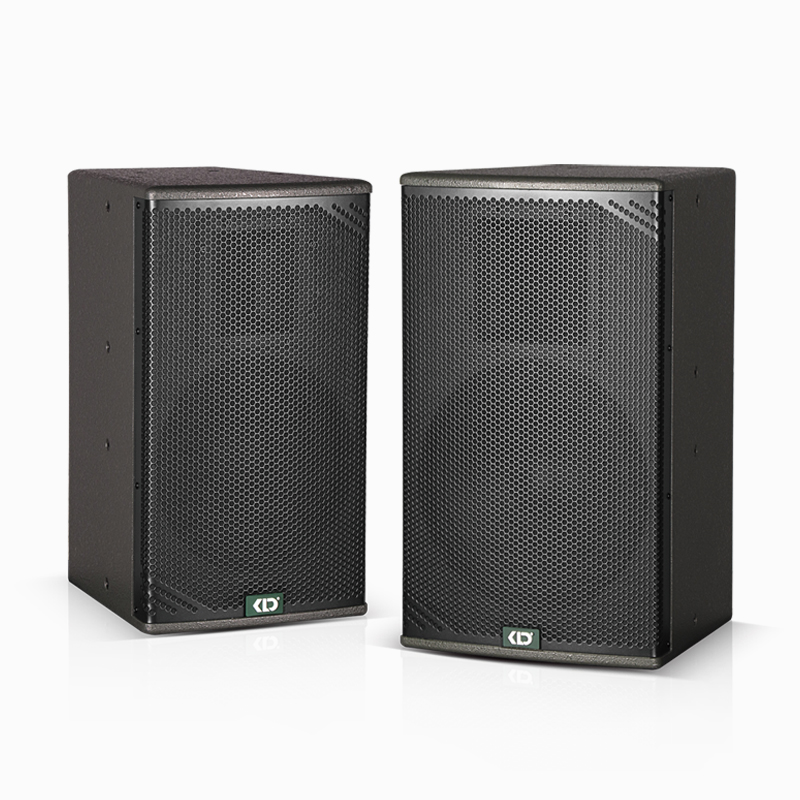

P-SERIES

Product Parameters:

Product model: P-10

Unit type: HF: imported 1x1 '' (34mm) voice coil,

LF: 1x10 '' 156 magnetic (65mm) voice coil

Frequency response: 60Hz-20KHz

Rated power: 300W

Peak power: 600W

Sensitivity: 98dB

Maximum SPL: 125dB (continuous), 128dB (peak)

Rated impedance: 8 Ω

Coverage angle(-6dB)(horizontal x vertical) :90 °× 50 ° (rotatable)

Box: Black textured coating

Protective net: black perforated iron mesh, with transparent cotton attached behind the mesh cover

Plug interface: 2xNL4 socket

Interface (input): 1+/1-

Interface (link through): 1+/- to 1+/-

Dimensions: 301x530x345mm

Weight: 18kg

Product model: P-12

Frequency response: 62Hz-20KHz

Drive unit:

LF: 12 "(300mm)/2.5" (63.5mm) voice coil

HF: 1 "(25mm)/1.4" (35mm) voice coil

Rated power: 350W

Peak power: 700W

Sensitivity: 98dB

Maximum SPL: 123dB continuous, 129dB peak

Impedance: 8 Ω

Coverage angle (-6DB)(horizontal x vertical): 80 ° x 50 ° (user rotatable)

Dimensions: 360 x574x393mm

Weight: 20 kg

Product model: P-15

Frequency response: 58Hz-18KHz

Drive unit:

LF:15 "(380mm)/3" (75mm) voice coil

HF:1 "(25mm)/1.7" (44mm) voice coil

Rated power: 500W

Peak power: 1000W

Sensitivity: 99dB

Maximum SPL: 126dB continuous, 132dB peak

Impedance: 8 Ω

Coverage angle: 80 °  x 50 ° (user rotatable)

Dimensions : 427 x 690 x 417mm

Weight: 28 kg
