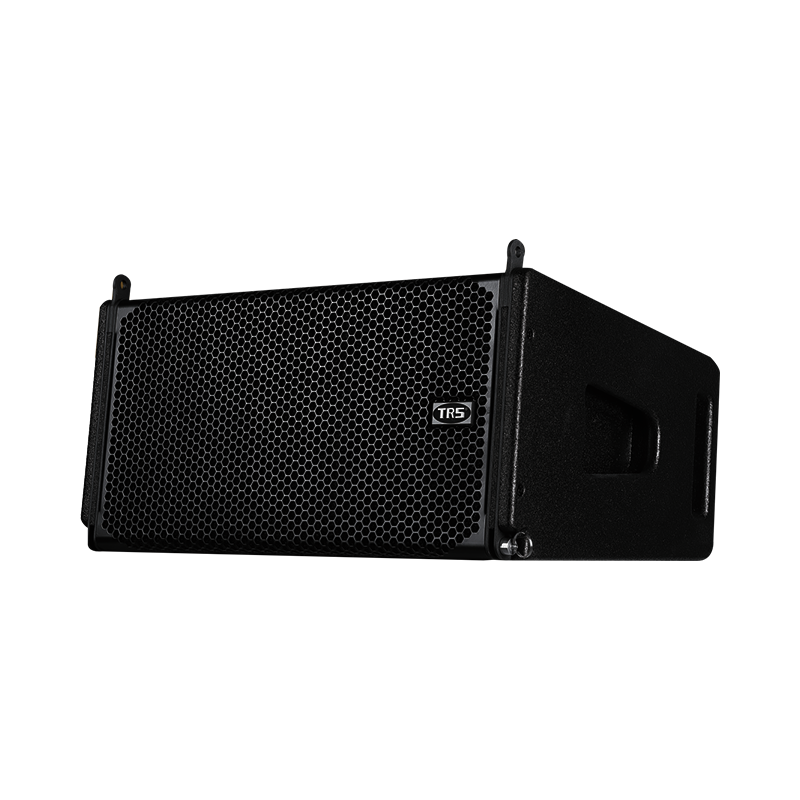

The TX series is a compact linear array loudspeaker that boasts excellent clarity and superior audio performance. It maintains an exceptionally smooth frequency response even at long distances, along with extraordinary dynamic bandwidth, high power, and dynamic headroom. It is an ideal choice for small to medium-sized line array systems in any type of sound reinforcement application. The series also features strong directivity and dispersion control capabilities, as well as an absolutely compact and lightweight cabinet structure. In addition, the loudspeakers are made of multi-layer composite plywood and finished with expressive water-based black paint, making them ideal for high-standard performance and fixed installation venues. They also provide protection for mobile loudspeaker systems in variable outdoor environments.
Application range:
Sound reinforcement systems in bars, small to medium-sized theaters, conference centers, auditoriums, art centers, multi-functional halls, stadiums and other small to medium-sized venues, etc.

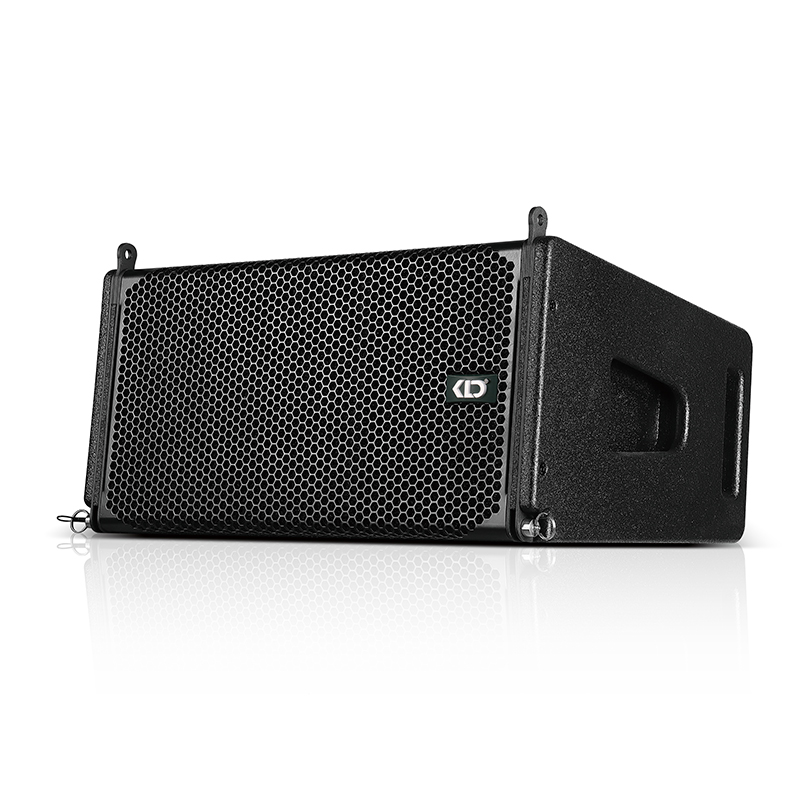

Model: TX-10 (Single 10-inch two-way line array loudspeaker)
Driver Type: LF: 1x10”, HF: 1x3”
Frequency Response: 65Hz-18KHz
Sensitivity: 98dB
Maximum Sound Pressure Level: 126dB
Rated Power: 300W
Rated Impedance: 16Ω
Cabinet Structure Material: 15mm multi-layer composite plywood
Connection Method: 2x NL4 loudspeaker sockets
WP4: Input 1+1-
Dimensions (WxHxD): 580x280x385mm
Weight: 26.5kg
