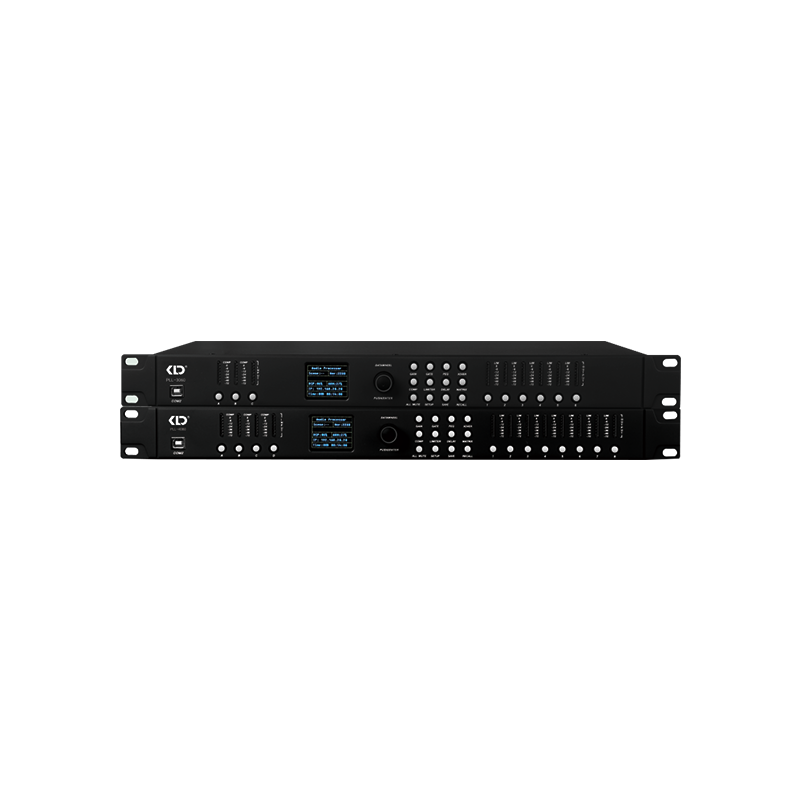

PLL-3060/4080

PLL-3060

Sampling rate: 48 kHz

Analog Input/Analog Output: 3 Inputs 6 Outputs

Input impedance: 10KΩ balanced / 20KΩ unbalanced

Output impedance: 50Ω balanced / 100Ω unbalanced

Frequency response: 20Hz – 20KHz ±0.1dB

Default output level: 0dBu

Maximum input/output level: 18dBu

THD+N distortion: ≤0.002% @ 4dBu 20Hz-20KHz

System delay: ≤1.7ms

Maximum noise floor: -92dBu

Dynamic range: ≥110dB

S/N Signal-to-Noise Ratio: ≥110dB

Input/Output Balance: 11 segments

Analog-to-Digital and Digital-to-Analog Conversion: 32-bit ADC / 24-bit DAC

All-pass filter: Yes

DSP Processing: Utilizes TI's OMAP-L138 high-performance DSP with a computing capability of up to 3,648 MIPS and 2,746 MFLOPS, featuring built-in audio algorithms and a sampling rate of 48 kHz

Parametric Equalizer: Input and output channels support up to 11-band equalization

Six types of filters: peak, notch, first-order all-pass, second-order all-pass, high-shelf, low-shelf

Filter gain range: -30dB to +30dB, step accuracy: 0.1dB

Input/Output Gain Range: -72dB to +12dB, Step Accuracy: 0.1dB

Center frequency: Adjustable within the 20Hz~20kHz frequency band with a 1Hz step accuracy

Filter Q value/ bandwidth: Peak, Notch, 2nd-order all-pass, Q value: 0.18 ~ 144.27

High and low pass filtering: Butterworth slope: 6/12/18/24/30/36/42/48 dB/Octave,

Bessel slope: 6/12/18/24/30/36/42/48 dB/Oct,

Linkwitz-Riley slope: 12/24/36/48 dB/Oct

Input noise gate: Threshold range: -100dBFS to 0dBFS

Startup time: 1ms to 1000ms;

Recovery time: 1ms to 1000ms

Input Compression: Threshold Range: -84dBFS to 0dBFS

Ratio: 1 to 20,

Startup time: 1ms ~ 1000ms

PLL-4080

Sampling rate: 48KHz

Analog input/analog output: 4 input 8 output

Input impedance: 10KΩ balanced/20KΩ unbalanced

Output impedance: 50Ω balanced/100Ω unbalanced

Frequency response: 20Hz – 20KHz±0.1dB

Default output level: 0dBu

Maximum input/output level: 18dBu

THD+N distortion: ≤0.002% @ 4dBu20Hz-20KHz

System delay: ≤1.7ms

Maximum noise floor: -92dBu

Dynamic range: ≥110dB

S/N signal-to-noise ratio: ≥110dB

Input/output equalization: 11 bands

AD & DA conversion: 32-bit ADC/24-bit DAC

All-pass filter: Yes

DSP processing: Using TI's OMAP-L138 high-performance DSP, the computing power is up to 3648 MIPS and 2746 MFLOPS has multiple built-in audio algorithms, with a sampling rate of 48KHz

Parametric equalizer: input and output channels support up to 11 bands of equalization

6 filter types: peak, notch, first-order all-pass, second-order all-pass, high shelf, low shelf

Filter gain range: -30dB ~ +30dB, step accuracy: 0.1dB

Input/output gain range: -72dB ~ +12dB, step accuracy: 0.1dB

Center frequency: adjustable in 1Hz step accuracy within the frequency band of 20Hz~20kHz

Filter Q value/bandwidth: peak, notch, second-order all-pass, Q value: 0.18 ~ 144.27

High and low pass filter: Butterworth slope: 6/12/18/24/30/36/42/48dB/Oct,

Bessel slope: 6/12/18/24/30/36/42/48dB/Oct,

Linkwich-Rayleigh slope: 12/24/36/48dB/Oct

Input noise gate: Threshold range: -100dBFS ~ 0dBFS

Attack time: 1ms ~ 1000ms;

Recovery time: 1ms ~ 1000ms

Input compression: Threshold range: -84dBFS ~ 0dBFS

Ratio: 1 ~ 20,

Attack time: 1ms ~ 1000ms
