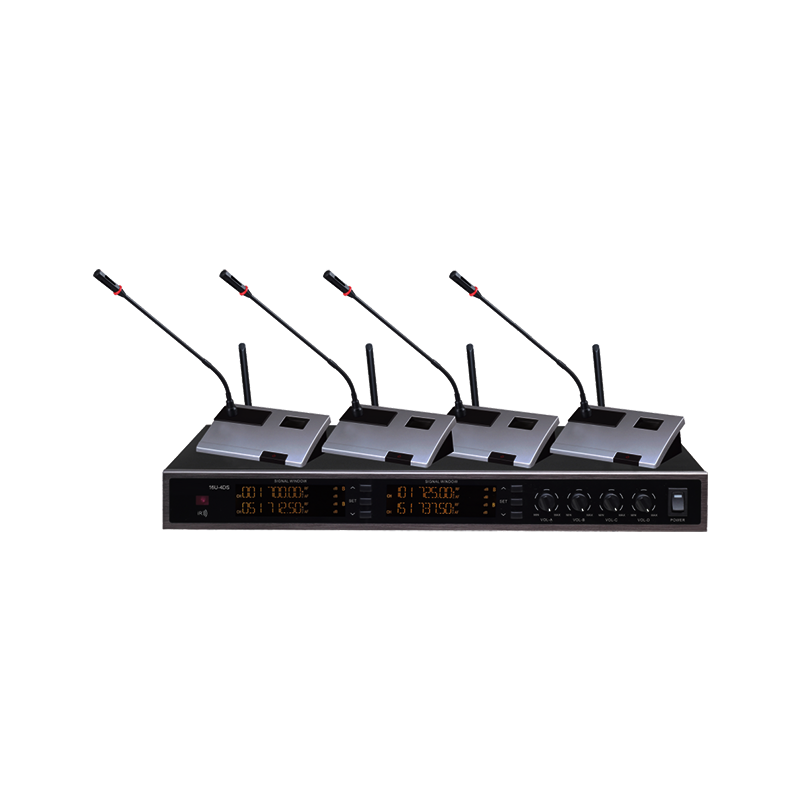

6USERIES

◎ Signal transmission over UHF band, frequency range: 500MHz–900MHz

◎ 4-channel reception; 100 selectable channels per channel, 250KHz step size, 24.75MHz bandwidth per channel

◎ Adopts stable PLL phase-locked loop synthesis technology and intelligent digital circuits for greatly improved overall stability

◎ Each channel is assigned a unique ID for enhanced anti-interference capability. Supports stacking up to 10 units (10 receivers and 40 transmitters)

◎ High-fidelity unidirectional condenser capsule for excellent sound reproduction. Pickup distance: 30–50 cm

◎ 2 rubber receiving antennas on the rear of the receiver to strengthen signal reception with an elegant appearance

◎ 2 balanced outputs plus 1 mixed unbalanced output on the rear panel for connection to various external devices

◎ All 400 channels are cross-compatible, humanized advanced design (the same transmitter works for 2-channel, 4-channel and 8-channel systems)

◎ Noise-free touch switch; press and hold for 0.5 seconds to power on

◎ Flexible gooseneck microphone boom, 360° adjustable. LED ring on boom indicates speaking status

◎ Microphone current consumption: 80mA, powered by three 1.5V batteries, up to 10 hours continuous operation

◎ Both receiver and transmitter feature LCD screens to display working status

◎ Operating range: 60–80 meters in open space; 40–60 meters in complex environments

◎ Suitable for various conference and speech applications.     Receiver Specifications

Oscillation Type: PLL Frequency Synthesis

Frequency Range: UHF 500MHz～900MHz

Frequency Stability: ±0.001%

Modulation Mode: FM

S/N Ratio: >60dB

Distortion: <0.5% @1kHz

Sensitivity: 1.2μV @ S/N=12dB

Power Supply: DC:12V～17V

Audio Output: Individual 0～400mV, Mixed 0～300mV  Transmitter Specifications

Power Supply: DC 4.5V (1.5V AA×3)

Microphone Current Consumption: 100mA

Carrier Frequency: UHF 500MHz～900MHz

Frequency Stability: ±0.001%

Max Frequency Deviation: ±30kHz

S/N Ratio: >60dB

Dimensions (L×W×H): 510×433×170mm

Net Weight: 5.95kg

Adjacent Channel Rejection: >80dB

Dynamic Range: ≥100dB

Type: Condenser

Polar Pattern: Unidirectional

Frequency Response: 40Hz～20kHz

Microphone Sensitivity: -43±3dB @1kHz
