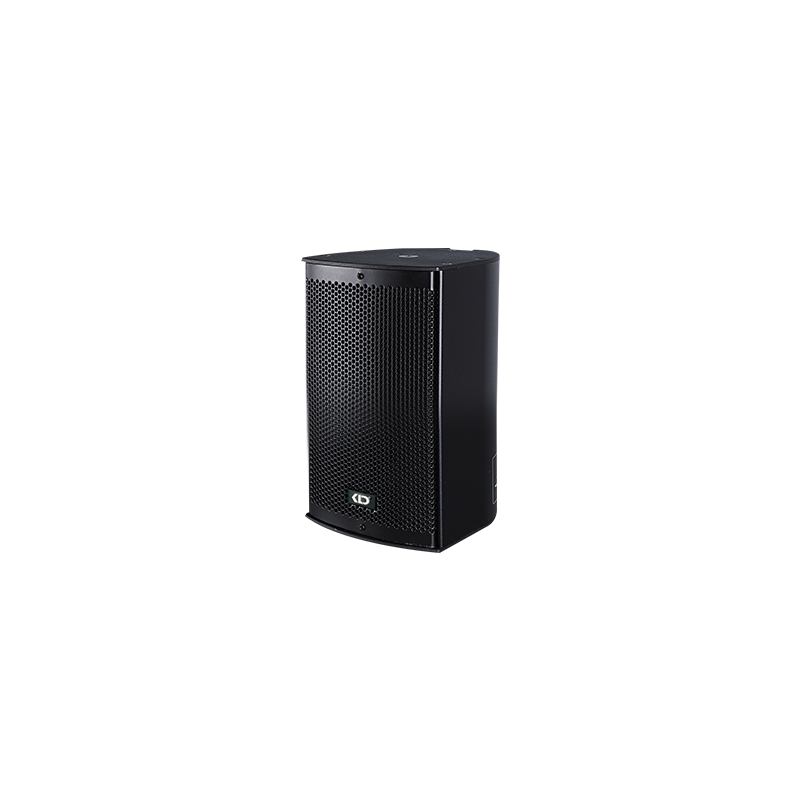

L-1.4

Product Detail

Series L is made of aluminum alloy with compact size and excellent performance, which ensures light weight and strong quality.Built-.in 1×4 "/2×4 "/4×4 "full frequency element, combined with array arrangement coplanar coupling technology, provides smooth frequency response curve.And wide coverage Angle, with very high language clarity and high fidelity timbre. Compact case with high sound pressure level.Output, high fidelity sound reinforcement performance, and can be composed of more than vertical array, with easy installation fast features, specially forFixed installation and small flow sound amplifiers provide high definition solutions.

Application: conference room, auditorium, banquet hall, concert hall, church,Paty band, fashion show, theme park, etc

Product model.....L- 1.4

System type... 1x4 inch full frequency speaker

Sensitivity (1W/1M)... 93 db

Frequency response... 125 hz - 18 KHZ

Rated power (AES)...... 40 w

Loudest pressure level... 106 db

Nominal coverage Angle (HxV) 80°x100°

Nominal impedance...... 8 Ω

Fittings... 2xSPEAKON four-core speaker socket 1+1-

Hanging hardware... 2 the xm8 lifting point

Size (HxWxD)... 160 x125x150mm

The weight... 2.4 kg
