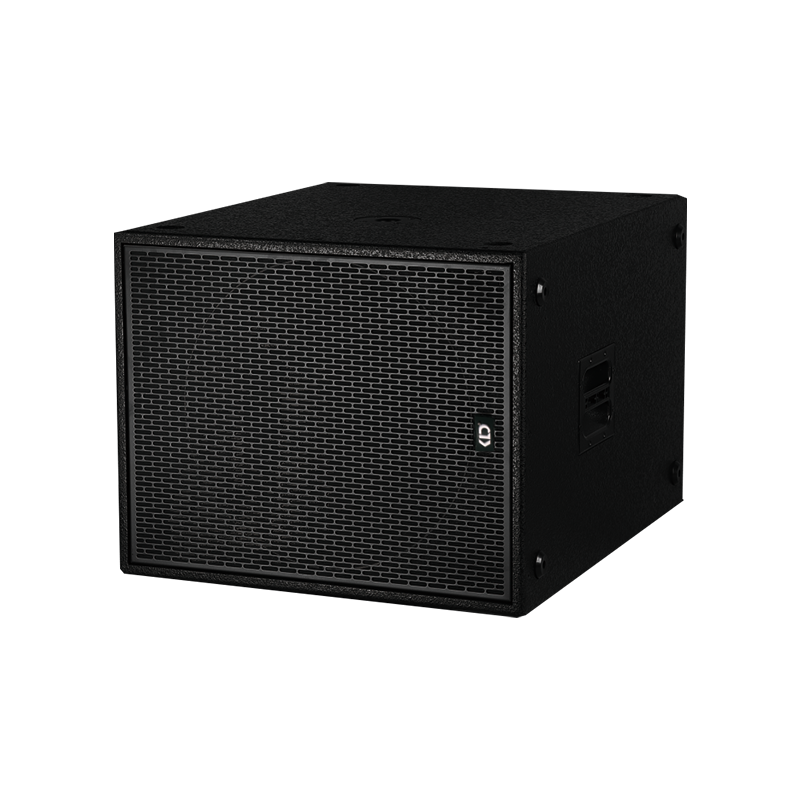

MG-18S

Product Features

The MG-18S subwoofer delivers outstanding low-frequency performance with a robust internal structure. It is designed for low-frequency reinforcement in main sound reinforcement systems, suitable for both portable and permanent fixed installation, offering perfect low-frequency extension for full-range loudspeakers.The MG-18S houses a long-throw FANE 18” woofer (4” voice coil) with aluminium chassis and advanced driver design to minimize power compression. Combined with a refined low-noise bass-reflex port and internal bracing, the MG-18S delivers high-output low-frequency response down to 28Hz with efficient dynamics.

Applications: Fixed or portable auxiliary bass reinforcement for medium-sized venues, including clubs, bars, live shows, cinemas and more.

Product Model: MG-18S

Configuration: 1 x 460mm (18 inch) driver, 100 mm (4 inch) voice coil

Frequency Range: 38Hz - 200Hz

Rated Power: 900 W / 1800 W / 3600 W (Continuous / Music Signal / Peak)

Impedance: 8Ω

Sensitivity (1w@ 1m): 102.5 dB

Maximum Sound Pressure Level: Continuous 132 dB (peak 138 dB)

Cabinet Structure: 18mm birch plywood, with handles, appearance color

Input Connector: 2 x NL4 Neutrik Speakon

Pin Assignment: Low-frequency: 1+, 1-

Dimensions (WxHx D): 660×530×786mm

Net Weight: 50.6kg
