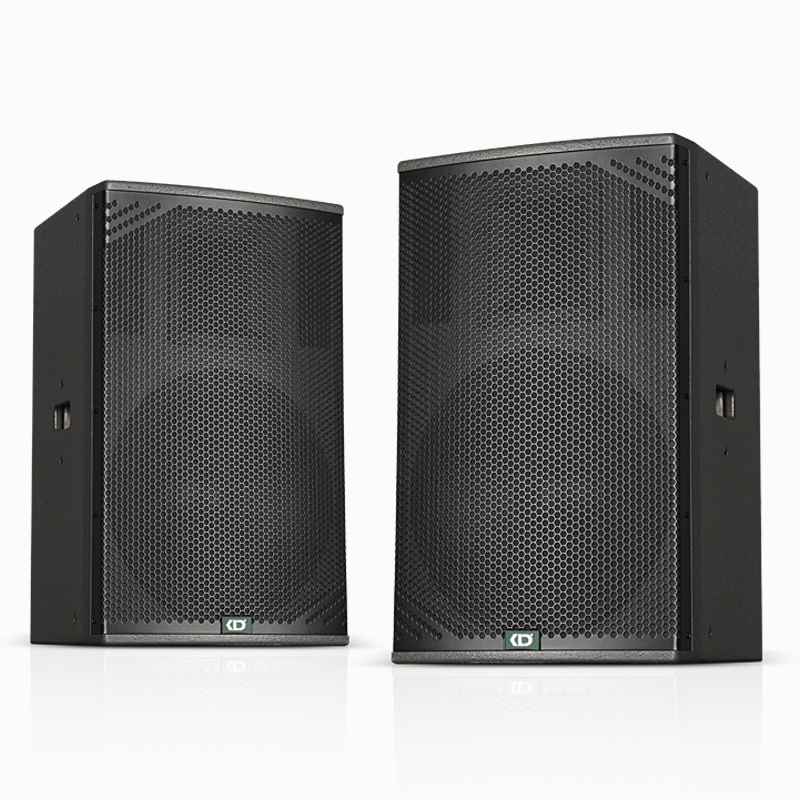

KI-SERIES

Ki-10 is an extremely compact 2-way passive loudspeaker, designed for home KTV, commercial KTV and music bar venues that demand pleasing sound over short

 listening distances. It is equipped with a 10-inch (250 mm) low-frequency driver featuring a 2.5-inch (63.5 mm) voice coil, paired with a 1-inch (25 mm) exit high-frequency

 compression driver with a 1.4-inch (35 mm) polyimide diaphragm. This KTV-specialised loudspeaker delivers boosted low-frequency response via a reinforced port.

The low-frequency driver incorporates a demodulation ring for distortion-free vocal reproduction. The horn is user-rotatable, supporting both vertical and horizontal

installation. It features a perforated steel grille, 8-ohm nominal impedance, an internal crossover network protecting both low-frequency and high-frequency drivers,

 dual NL4 connectors and multiple M8 rigging points.

Specifications

Model: Ki-10

Frequency Response: 65Hz–20KHz

Drivers:

LF: 10" (250mm) with 2.5" (63.5mm) voice coil

HF: 1" (25mm) exit compression driver with 1.4" (35mm) polyimide diaphragm

Power Rated: 300W

Peak Power: 600W

Sensitivity: 98dB

Max SPL: 127dB Peak

Nominal Impedance: 8Ω

Coverage Angle: 80°H × 50°V (User Rotatable)

Dimensions : 300 × 530 × 345mm

Net Weight: 16kg

Ki-12 is an extremely compact 2-way passive loudspeaker, designed for home KTV, commercial KTV and music bar venues that demand pleasing sound over short

 listening distances. It is fitted with a 12-inch (300mm) low-frequency driver with a 2.5-inch (63.5mm) voice coil, plus a 1-inch (25mm) exit compression driver loaded

 on a rotatable 80°×50° horn with a 1.4-inch (35mm) polyimide diaphragm. This KTV-specialised loudspeaker offers enhanced bass response through a reinforced

 rear port. The low-frequency driver adopts a demodulation ring for distortion-free vocal performance. The horn is user-rotatable to allow vertical and horizontal

installation. It comes with a perforated steel grille, 8-ohm nominal impedance, an internal crossover network with LF and HF driver protection, dual NL4 connectors

 and multiple M8 rigging points.

Specifications

Model: Ki-12

Frequency Response: 62Hz–20KHz

Drivers:

LF: 12" (300mm) with 2.5" (63.5mm) voice coil

HF: 1" (25mm) exit compression driver with 1.4" (35mm) polyimide diaphragm

Power Rated: 350W

Peak Power: 700W

Sensitivity: 99dB

Max SPL: 129dB Peak

Nominal Impedance: 8Ω

Coverage Angle: 80°H × 50°V (User Rotatable)

Dimensions : 357 × 600 × 385mm

Net Weight: 21kg
