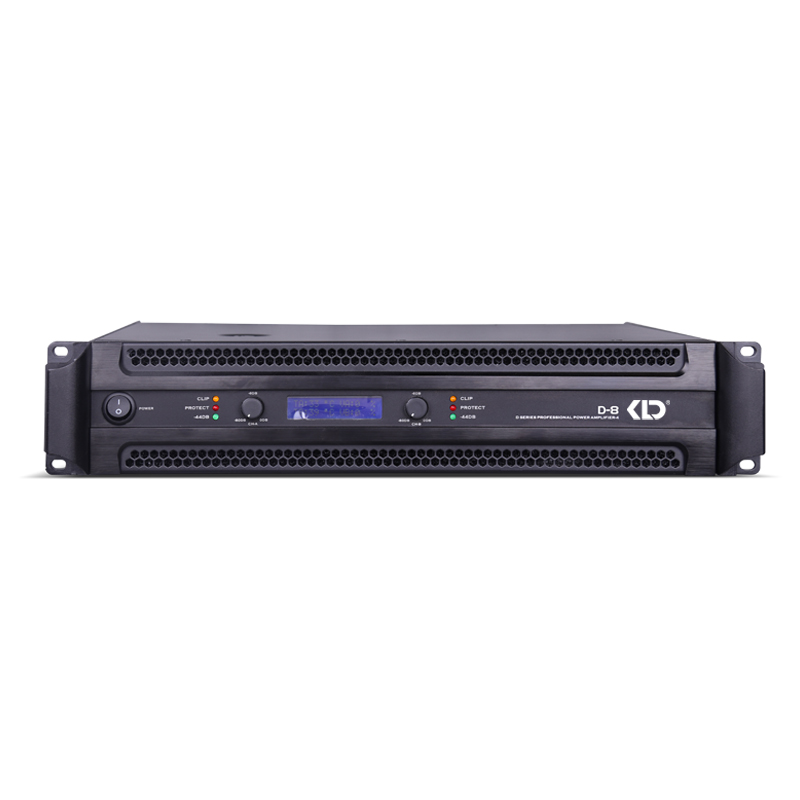

Model: D-8
◎ Stereo Output Power: 800W/8Ω; 1200W/4Ω
◎ Bridge Output Power: 2400W/8Ω;
◎ Signal to Noise Ratio:≥105dB
◎Conversion rate:90V/uS
◎Damping coefficient:≥240
◎ Frequency response: 20Hz-20KHz,± 0.5dB
◎Total harmonic distortion:≤0.5%,1KHz,1/3 Rate Power ,8Ω
◎Transient Intermodulation Distortion:≤0.1%，1KHz，1/3 Rate Power,8Ω
◎Channel separation degree:≥85dB
◎ Input sensitivity:0.775V/1V/1.4V(+5dBU),BALANCE
◎Input impedance:20KΩ，BALANCE/10KΩ，UNBALANCE
◎Input interface:Three-core Caron(XLR)INPUT
◎Output interface:Three-core Caron(XLR)LINK
◎Speaker interface:1/4# SPEAKON,BINDING POST
◎Indicator light:SIGNAL(-40dB),CLIP(PEAK),PROTECTION
◎Power consumption :2520W
◎Heat radiation:FRONT TO REAR STEPLESS AIR COOLING FAN
◎Net weight:17kg
◎Gross weight:19.5kg
◎Dimensions(W*D*H) : 483 * 385*89mm
