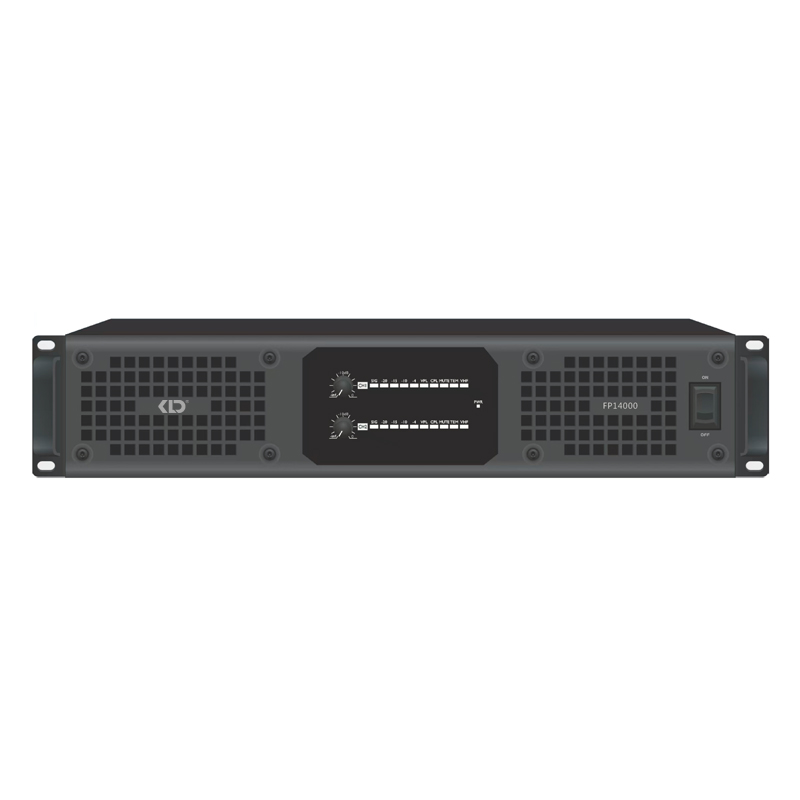

FP-14000

Feature

◆ Each channel can independently select SOFT or HARD mode

◆ Equipped with high-impedance/open-circuit detection, the front panel HI-IMP indicator will illuminate in case of an abnormality

◆ Equipped with high-frequency protection, the front panel VHF indicator will light up when an abnormality occurs

◆With temperature protection, the HEAT indicator on the front panel will light up in case of abnormal conditions

◆With overcurrent protection, the CAL light will illuminate in case of an abnormality

◆R-SMPS regulated switching power supply ensures robust power delivery for optimal sound quality, even under highly unstable power conditions

◆High-sensitivity CMRR balanced input enhances noise suppression, effectively preventing even the slightest signal interference

◆Utilizing top-tier electronic components, it ensures stability, durability, and meets the highest audio quality standards

◆Maintain maximum stability under continuous full power operation with a 2Ω load

◆Front-to-back cooling and exhaust system design ensures long-term, high-reliability operation and performance of the equipment

◆ Rear panel features an 8-position voltage gain switch with options of 23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB, and 44dB

◆The rear panel features a VPL voltage limiting function, allowing independent adjustment of each channel to 38V, 47V, 56V, 70V, 83V, 101V, 121V, or 150V

Parameter

◆Power: 2×2000W/8Ω 2×4400W/4Ω 2×7000W/2Ω 8800W/8Ω bridged 14000W/4Ω bridged

◆Frequency Response: 2Hz - 34.2KHz

◆Total Harmonic Distortion: <0.1%

◆Signal-to-noise ratio: ≥112dB

◆Input Sensitivity: 0.775V

◆Optional Gain: 44dB/41dB/38dB/35dB/32dB/26dB/23dB```

◆Input Impedance (Balanced/Unbalanced): 20KΩ/10KΩ

◆Gain: 35dB VPL:195V

◆Cooling: Blow air from front to back

◆ Product dimensions (mm): 485×398×88

◆Gross weight: 18kg
