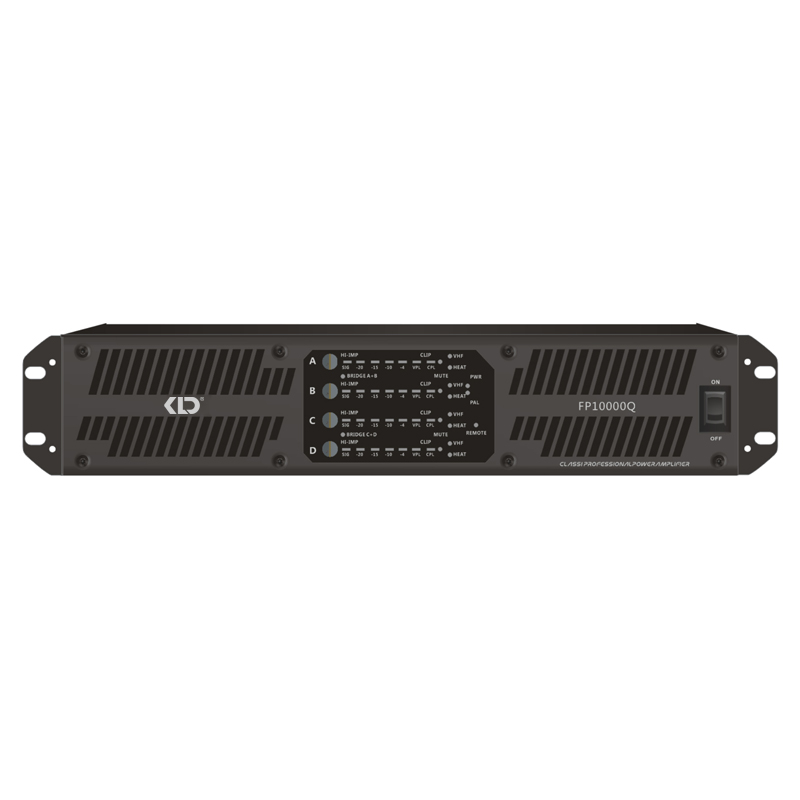

FP-10000Q

Technical parameter

Feature

◆ Each channel can independently select SOFT or HARD mode

◆ Equipped with high-impedance/open-circuit detection, the HI-IMP indicator on the front panel will light up in case of an abnormality

◆Equipped with high-frequency protection, the VHF indicator on the front panel will light up in case of an anomaly

◆With temperature protection, the HEAT light on the front panel will illuminate in case of an abnormality

◆With overcurrent protection, the CAL light will illuminate in case of an abnormality

◆The R-SMPS regulated switching power supply ensures a robust power supply for optimal audio performance, even under highly unstable power conditions

◆High-sensitivity CMRR balanced input enhances noise suppression, effectively preventing even the slightest signal interference

◆Utilizing top-tier electronic components, it ensures stability and durability while delivering optimal sound quality

◆ Maintains maximum stability under continuous full-power operation with a 2Ω load

◆The front-to-back heat dissipation and exhaust system design ensures long-term, high-reliability operation and performance of the equipment

◆ The rear panel features an 8-position voltage gain switch with options of 23dB, 26dB, 29dB, 32dB, 35dB, 38dB, 41dB, and 44dB

◆The rear panel features a VPL voltage limiting function, allowing independent adjustment of each channel to 38V, 47V, 56V, 70V, 83V, 101V, 121V, or 150V

parameter

◆Power: 4×1450W/8Ω 4×2342W/4Ω 4×2789W/2Ω 2*4685W/8Ω bridged 2*5577W/4Ω bridged

◆Frequency Response: 20Hz-25KHz, ±0.5dB

◆Total Harmonic Distortion: ≤0.1%

◆ Signal-to-noise ratio: ≥90dB

◆Input Sensitivity: 44dB/41dB/38dB/35dB/32dB/29dB/26dB/23dB

◆Input Impedance (Balanced/Unbalanced): 20KΩ/10KΩ

◆Voltage Peak Limiter (per channel): 150V/121V/101V/83V/70V/56V/47V/38V

◆Cooling: Fan blowing from front to back

◆Product dimensions (mm): 485×375×90

◆Gross weight: 12.9kg
