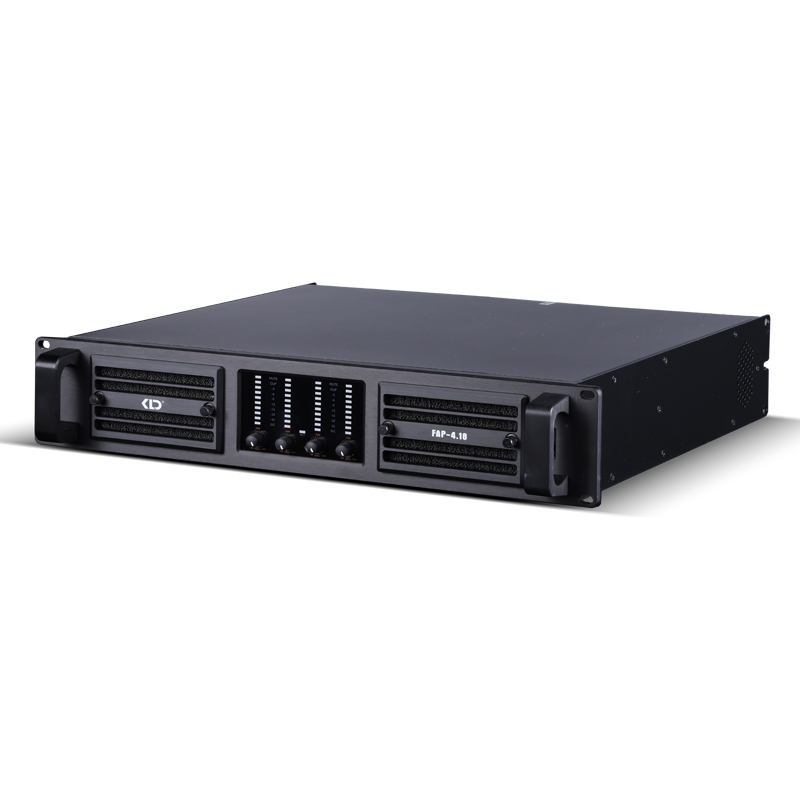

FAP-4.18

Features

-FAP series power amplifiers feature ultra-high power, high performance, and high stability. They are widely used in bars, audio halls, tourism, and cinemas.

-High-power, high-efficiency, high-performance Class D modular power circuit.

-Ultra-high power switching stabilized power supply.

-High-current high-frequency MOS transistor output path with up to 150A, featuring low output internal resistance.

-Capable of stable long-term operation at low impedance: 2Ω.

-Specially designed output LC circuit provides a more comprehensive, wide-range, and delicate sound.

-Aluminum plate with brushed finish, stable, beautiful, durable, and high-end in appearance.

-During soft start, it has overload, overheat, short circuit, DC output, peak voltage limit, and intelligent adjustment of peak protection.

Technology Specification

Model:FAP-4.18

Output power: Stereo Power 4x1800W 8Ω，4x3500W 4Ω；4x4500W 2Ω

Bridge power: 4500W 8Ω,5000W 4Ω

Frequency response: 20HZ-20KHZ

Total harmonic distortion:<0.01%

Input sensitivity:0.775V, 1.0V, 32dB

Conversion rate: 30V/ps

Damping coefficient: (100Hz)>500:1

Signal to noise ratio: 100dB (A)

Channel spacing:>65dB

Net weight:13.2kg

Packaging size: 580x520x185MM

Working voltage: AC 220V/50-60Hz
