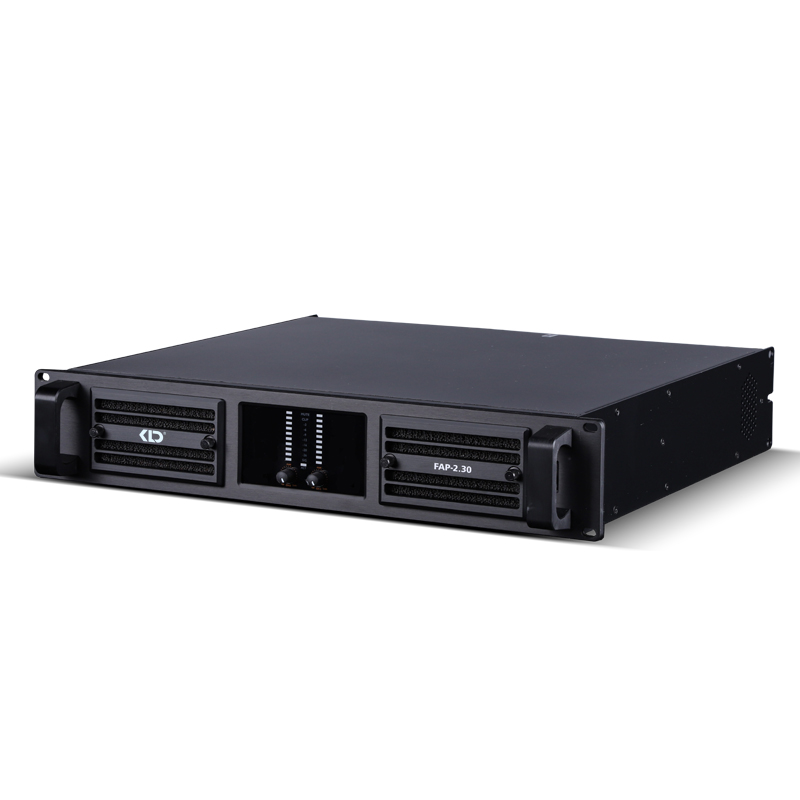

FAP-2.30

Product features:

1. Front panel control buttons, power switch, channel gain control knob;

2. Output mode switch: stereo, parallel, bridge; Input sensitivity switch: 0.775V, 1V, 32dB;

3.2 balanced XLR inputs, 2 balanced XLR LINK chain interfaces, using speaker spiral socket output audio interface;

4. Power indicator light, signal indicator light, clipping indicator light, fault indicator light;

5. Work indicator light red LED, one green LED per channel, one yellow LED per channel, and one red LED per channel;

6. Test the power under a 1KHz sine wave for 20ms. Test the power under a 1KHz sine wave for 10ms;

Product Parameters:

1. Output power per channel: 8 Ω 2X3000W, 4 Ω 2X5500W, 2 Ω 2X7000W;

2. Bridge output power for every two channels: 8 Ω 2X9000W, 4 Ω 2X10000W;

3. Frequency response (20Hz-20KHz): ± 0.5dB;

4. Total harmonic distortion:<0.1%;

5. Conversion rate: 40V/us;

6. Damping coefficient (100Hz):>1000:1;

7. Signal to noise ratio: 105dB (A);

8. Channel separation:>65dB;

9. Input impedance: 20K Ω balanced input/10K Ω unbalanced input;

10. Input gain range: 32dB, 29dB, 26dB;

11. Working voltage: AC220V50-60Hz;

12. Gross weight: 13.3kg;

13. Body size: 485mm x 500mm x 88mm
