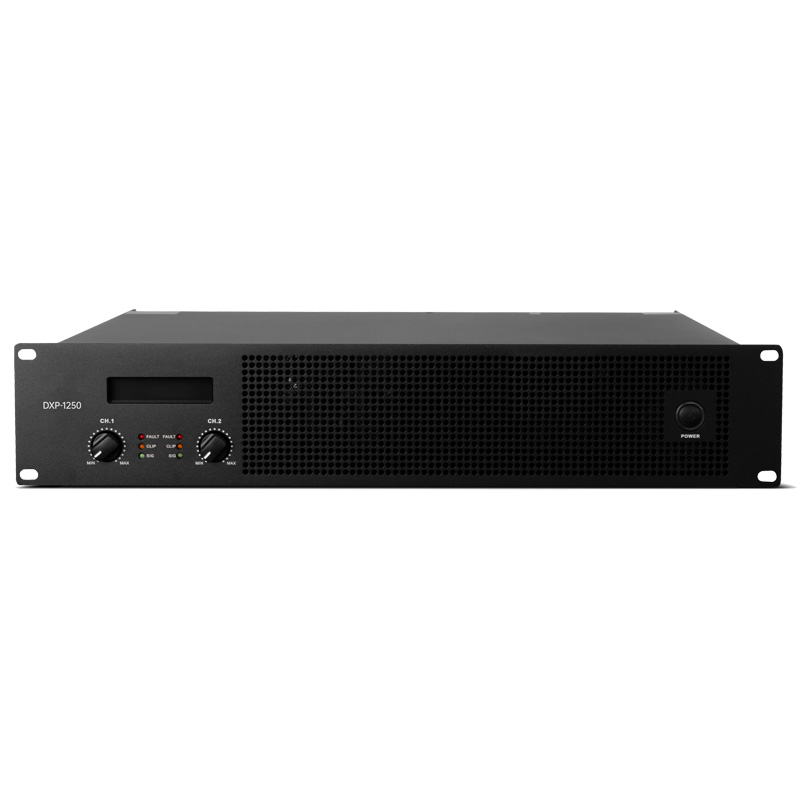

DXP-1250

Technical parameter

Model: DXP-1250

Power :1KHz (EIA) with 0.5% THD,8 ohms stereo (per channel): 1250W

4 ohms stereo (per channel): 1880W,8 ohms bridge mono: 3750W

Frequency Response (1W): 20Hz-20KHz, +0/-1dB

Total Harmonic Distortion (THD): <0.5%, 20Hz-20KHz

Intermodulation Distortion (IMD): 60Hz and 7KHz at 4:1, from full rated output to -30dB =/<0.35%

Slew Rate: >10V/us

Voltage Gain: 36dB

Damping Factor (8 ohms), 10Hz-400Hz: >200

Signal-to-Noise Ratio (ref. rated output power, 20Hz to 20KHz, A-weighted): >100dB

Crosstalk (ref. rated output power):At 1KHz: -75dB;At 20KHz: -59dB

-Input Sensitivity (rated 8 ohms): 0.775V or 1.4V

-Input Impedance (rated)

-Balanced: 20K ohms

-Unbalanced: 10K ohms

Connectors, Controls, and Indicators

-Input Connectors: One balanced XLR and one unbalanced RCA per channel

-Output Connectors (Speaker Terminals): 4-POLE Speakon and a pair of binding posts per channel

-Front Panel Controls: Power switch, channel gain knobs

-Rear Panel Controls: Output mode switch (stereo, parallel, bridge), input sensitivity switch (0.775V or 1.4V)

-Power Indicator Light:One blue LED signal indicator light,One green LED clipping indicator light per channel,One yellow LED fault indicator light per channel,One red LED per channel indicating channel off

Power Cord Specifications

-Plug: 10A, 250V

-Wire: CCC 3x1.5mm²

Protection:

Short circuit protection,No-load protection,Turn-on/off noise protection

Radio interference protection,Cooling,Forward-to-backward air convection cooling mechanism

Internal forced air cooling,Fan cooling,Quick adjustment,Temperature protection

Dimensions (WxHxD):482 x 89x 395mm

Net Weight:18.8kg

Shipping Weight:22kg
