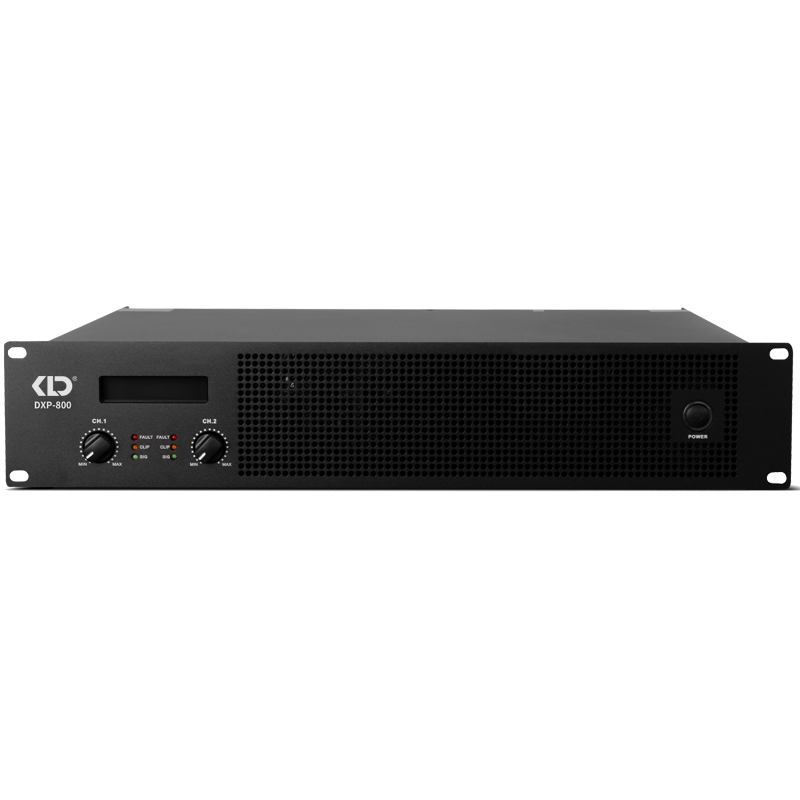

DXP-800

Technical parameter

Product Model: DXP-800

Frequency Response：1KHz(EIA)with 0.5% THD：800Wx2/8Ω；1200Wx2/4Ω；

bridge mono 2400W/8Ω

Total Harmonic Distortion (THD) <0.5%, 20Hz - 20KHz

Intermodulation Distortion (IMD) 60Hz and 7KHz at 4:1, from full rated output to -30dB =/<0.35%

Conversion Rate >10V/us

Voltage Gain: 35dB

Damping Factor (8Ω), 10Hz - 400Hz >200

Signal-to-Noise Ratio (referring to rated output power, 20Hz to 20KHz, A-weighted) >100dB

Crosstalk (referring to rated output power)；At 1KHz -75dB；At 20KHz -59dB

Sensitivity (rated 8Ω) 0.775V or 1.4V

Impedance (rated) Balanced 20K Ω, Unbalanced 10K Ω

Connectors, Control Buttons, and Indicator Lights

Input Connectors One balanced XLR and one unbalanced RCA per channel

Output Connectors (Speaker Connection Interface) 4-POLE  and a pair of binding posts per channel

Front Panel Control Buttons Power switch, channel gain control knob

Rear Panel Control Buttons Output Speakonmode switch: Stereo, Parallel, Bridge

-Input Sensitivity Switch: 0.775V or 1.4V

-Power Indicator Light One blue LED

-Signal Indicator Light One green LED per channel

-Clipping Indicator Light One yellow LED per channel

-Fault Indicator Light One red LED per channel, indicating channel off

Power Cord Specification

-Plug: 10A, 250V

-Wire: CCC 3x1.5mm2

Structure Protection

-Protection against short circuit, no-load, on/off noise, and radio interference

Ventilation

-Air convection mechanism from front to back

-Internal forced air cooling, fan cooling, rapid adjustment, temperature protection

Dimensions (WxHxD): 19" x 3.5" x 12.4" (482mm x 89mm x 345mm)

Net Weight: 14.5kg

Shipping Weight: 17.1kg
