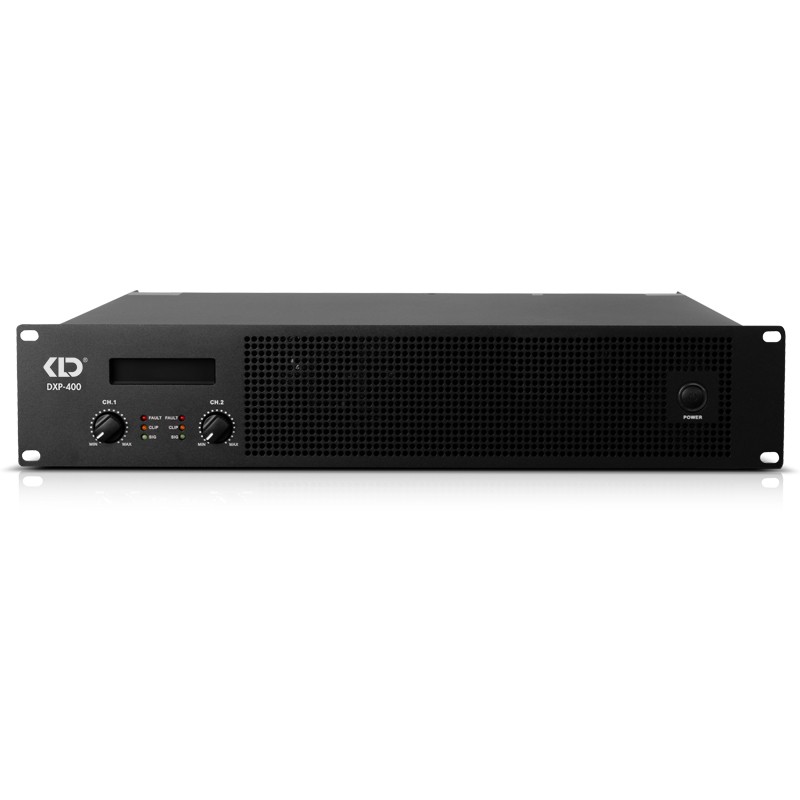

DXP-400

Technical parameter

Product Model: DXP-400

Frequency Response：1KHz(EIA)with 0.5% THD；400Wx2/8 Ω；600Wx2/4 Ω；

bridge mono: 1200W/8 Ω

Total Harmonic Distortion (THD): <0.5%, 20Hz - 20kHz

Intermodulation Distortion (IMD): 60Hz and 7kHz at 4:1,

from full rated output to -30dB =/<0.35%

Slew Rate: >10V/us

Voltage Gain: 31dB

Damping Factor (8 Ω), 10Hz - 400Hz: >200

Signal-to-Noise Ratio (referring to rated output power, 20Hz to 20kHz, A-weighted): >100dB

Crosstalk (referring to rated output power) ；At 1kHz: -75dB；At 20kHz: -59dB

Sensitivity (rated 8 Ω): 0.775V or 1.4V

Impedance： Balanced: 20KΩ

Unbalanced: 10KΩ

Connectors, Control Buttons, and Indicator Lights

- Input Connectors: One balanced XLR and one unbalanced RCA per channel

- Output Connectors (speaker connection interface): 4-POLE Speakon and a pair of binding posts per channel

- Front Panel Control Buttons: Power switch, channel gain control knob

- Rear Panel Control Buttons: Output mode switch (stereo, parallel, bridge), -input sensitivity switch (0.775V or 1.4V)

- Power Indicator Light: One blue LED

- Signal Indicator Light: One green LED per channel

- Clipping Indicator Light: One yellow LED per channel

- Fault Indicator Light: One red LED per channel, indicating channel off

Power Cord Specification

- Plug: 10A, 250V

- Wire: CCC 3x1.5mm²

Structure Protection

- Protection against short circuit, no-load, on/off noise, and radio interference

Ventilation

- Air convection mechanism from front to back

- Internal forced air cooling, fan cooling, rapid adjustment, temperature protection

Dimensions (WxHxD): 19" x 3.5" x 12.4" (482mm x 89mm x 345mm)

Net Weight: 12.7kg

Shipping Weight: 15.3kg
