Design FEATURES
IW series karaoke speaker system is the TRS audio home theater cinema integration in the new series of products, professional for families, enterprises and institutions, multi-function hall, club, volume type room and the development of a multifunctional speaker system, can satisfy the HIFI room listening to music, singing karaoke, big dynamic DISCO dance festival, games, such as multi-functional purposes.
Technical SPECIFICATIONS

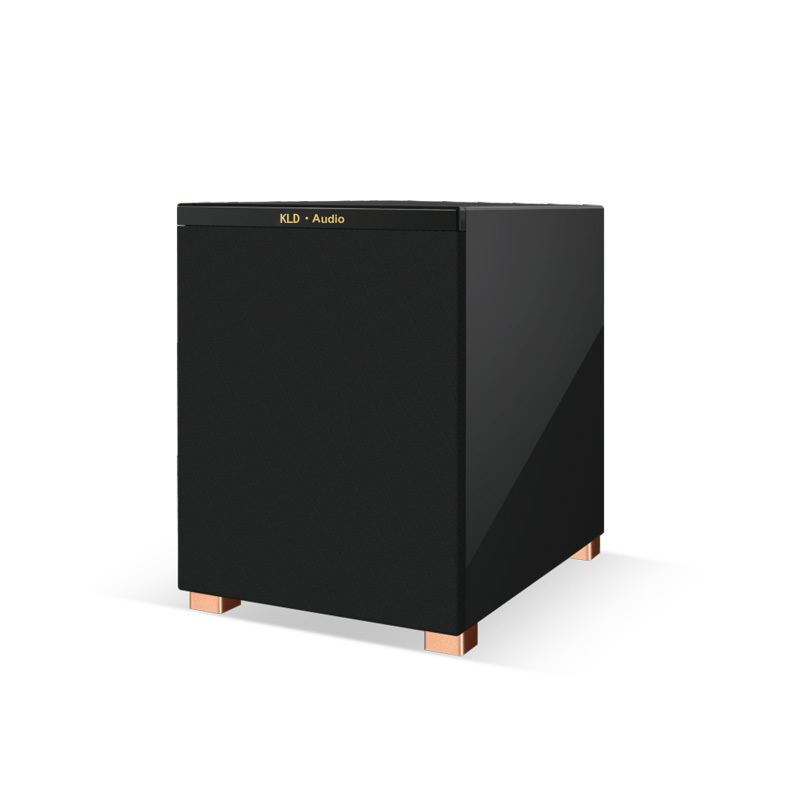

Speaker mode..................IW-120S
Type..................................12" leading phase active subwoofer
Frequency Response......32-500 Hz
Power rated......................350W(built-in amplifier)
SPL max.................121 dB
LF Drivers.........................12"*1(320mm）75 "4-layer al - mg alloy skeleton long stroke voice coil unitCoverage of HF Dispersion... 360 °
HF Dispersion..................360°
Pin Connctions.............RCA andFemale XLR
Box Structure...................Medium density acoustic fiberboard with black matte finish
Facing Wire............................Waterproof wood frame covered with sound permeable cloth
Hanging Structure............No hoisting, can be placed separately
Installation dimensions(WxDxH)..........................407*530*571mm
Net Weight..............................30.6 Kg/只
