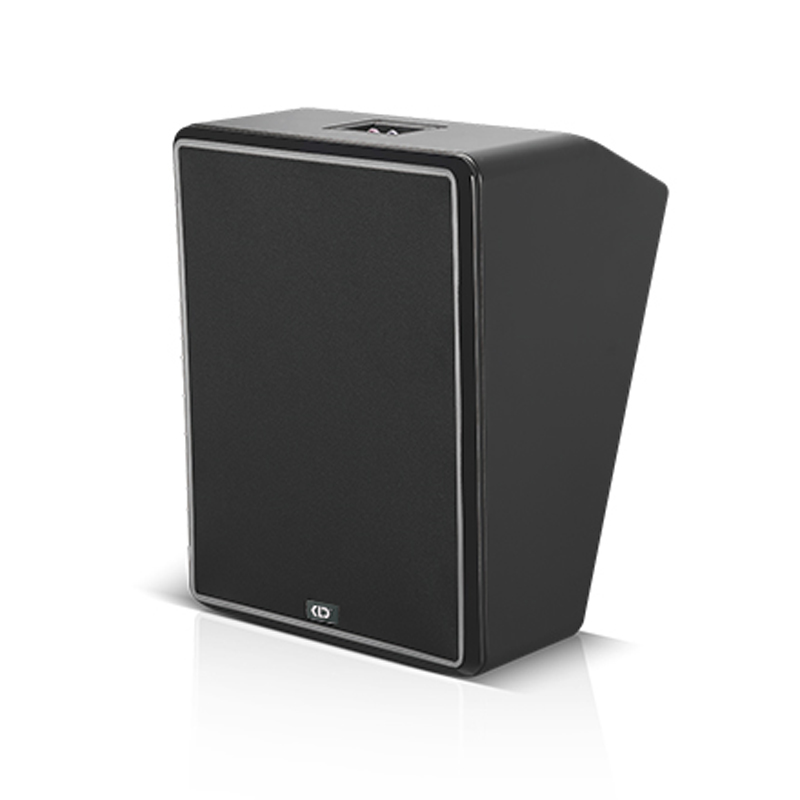

CT-106C

Features

The CT series integrated KTV home theater speaker system is a new product series in the TRS Audio home theater line. It is a multi-functional speaker system specifically developed for multi-purpose halls in households, enterprises and public institutions, clubhouses, and retail rooms. It can simultaneously meet the multi-functional needs of HIFI music listening, KTV singing, high-dynamic room DISCO dancing, and gaming.

The compact speakers are designed specifically for immersive audio formats, featuring high power output and flexible installation characteristics. They have a fashionable appearance and high cost performance. The enclosure adopts a unit phase-inverted trapezoidal design, with high dynamics and low distortion, meeting the dynamic requirements of various movies. The real还原 spatial reverberation process has a moving audio-visual and on-site sense of presence, making people feel immersed.

The CT-106C supports overhead installation. There are four mounting points on the back panel of the enclosure. When installing on the ceiling, multi-angle aiming brackets can be used. The pre-installed speaker terminal hardware allows for a quick and easy wall-mounted installation mode, supporting a downward angle of 15° or 23°

Specifications

Speaker Model: CT-106C

Configuration: LF: 1x 6.5-inch 35mm voice coil 120mm magnetic HIFI-grade customized bass unit

    HF: HIFI-grade customized 25mm tweeter unit

Frequency Response: 70 - 20kHz (±3dB)

Rated Power: 130W

Peak Power: 260W

Sensitivity: 90dB

Maximum Sound Pressure Level: 105dB

Impedance: 8Ω

Coverage Angle: 85°x 85°

Dimensions: 330x 275x 220mm

Net Weight: 6.5kg
