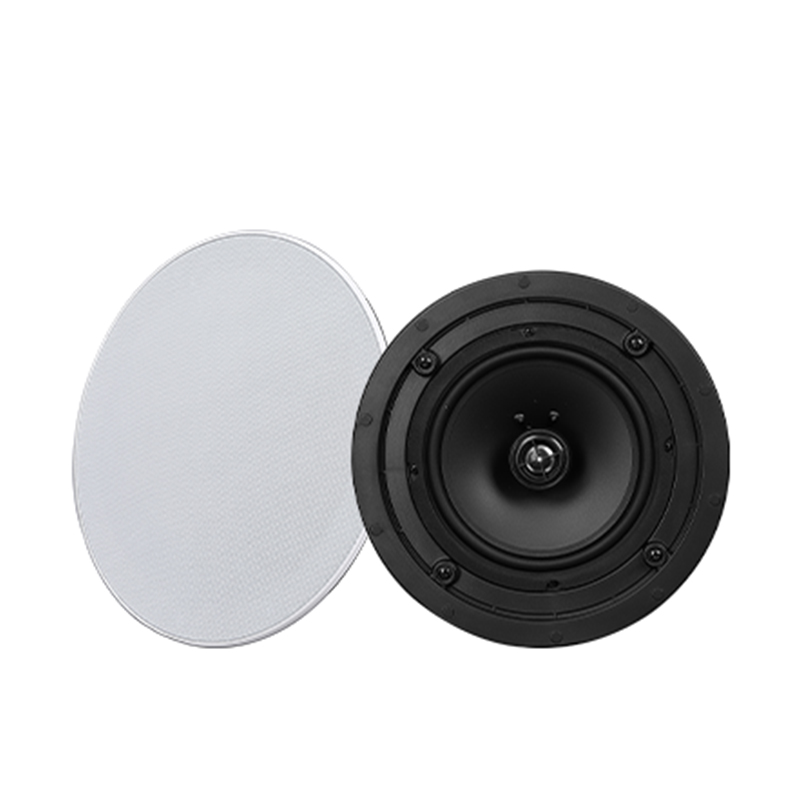

QR-620T

Product features

The QR-SERIES series of embedded ceiling-mounted home theater systems is the latest R&D product of Lingjie Enterprise, specifically

customized for high-fidelity theater installation series. The speakers in this series are 6.5-inch ultra-thin ceiling speakers, equipped with a 40W

transformer and a 6-position adjustment switch. They can be used for both fixed voltage and fixed resistance adjustment, and can be connected

to either 100V or 70V fixed voltage amplifiers. The enclosure adopts a magnetic suction net cover, which is elegant and generous. Paired with

a high-power 8-inch powerful active subwoofer, it perfectly matches the mid and high-frequency sound lines, reproducing realistic and grand

movie scenes, making you feel like you are on the scene and bringing you wonderful experiences every day. -- Adjustable for both fixed

voltage and fixed resistance, can be used with either 100V or 70V fixed voltage amplifiers. -- The design of the compact enclosure, together

with the white metal narrow-edge dust-proof net cover, is fashionable and beautiful. -- 45° sound diffusion and reflection angle, achieving

accurate and efficient sound field coverage, evenly distributed, with realistic and clear human voice. -- The most considerate and simplest

installation method, saving time and effort.

Technical parameter

Product Model: QR-620T

Unit Type: 1x6.5" Bass, 1x1" Tweeter

Impedance: 8Ω

Output Value: 85±3dB

Resonance: 72±20Hz

Frequency Response: 72Hz-20KHz±3dB

Rated Input Power: 40W

Maximum Input Power: 60W

Product Dimensions (WxD): 244x73mm

Cutout Size: 208mm

Net Weight: 1.66kg

Tap Switch: 8ῼ-nc-40W-20W-10W-5W

Material: ABS
