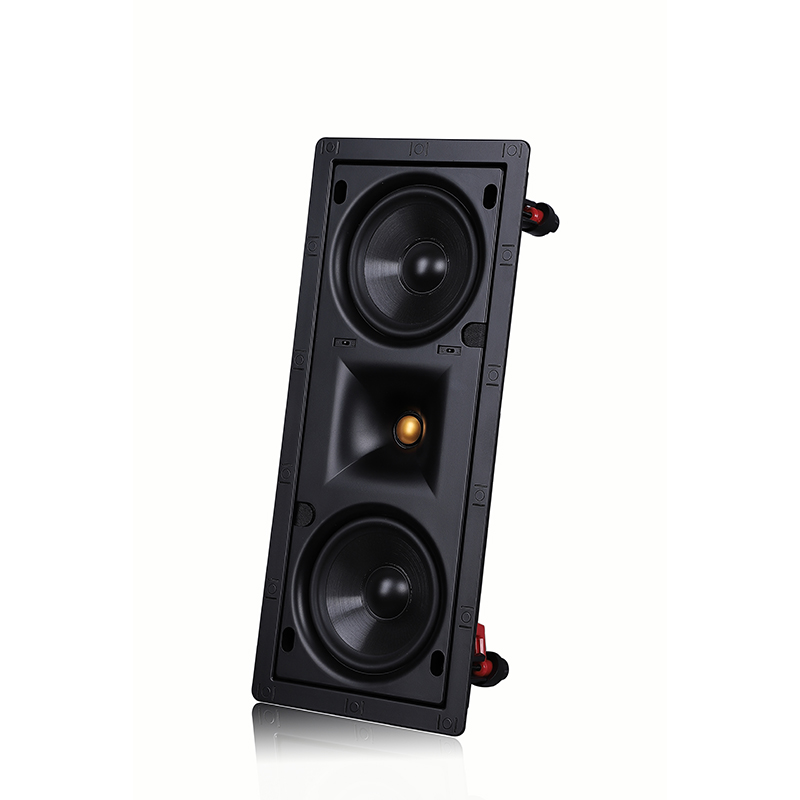

QR-520

Product features

The QR-520 compact embedded cinema system features a fiber composite cone design for its bass unit. It is lightweight and made of

sturdy materials, meeting the high dynamic requirements of cinemas. This design makes the vocals clear and crisp, full of infectivity.

The high-frequency part adopts a 1-inch/25mm high-frequency unit and is paired with a horn-style structural design, resulting in a wider

frequency range and stronger penetrability. As a result, the high tones are bright, the overall sound is more natural and smooth, and the

distortion rate of the cinema sound effect is low, providing listeners with a better audio experience.

Technical parameter

Product Model: QR-520

Configuration: 1x tweeter, 2x 5-inch woofers

Frequency Response: 72Hz - 20KHz

Rated Power: 50W

Peak Power: 100W

Sensitivity: 86dB

Impedance: 8Ω

Connection Method: Push-type terminal

Dimensions (WxHxD): 205x 455x 103mm

Cutout Dimensions: 415 x 165mm

Weight: 3kg
