Technical Parameters:

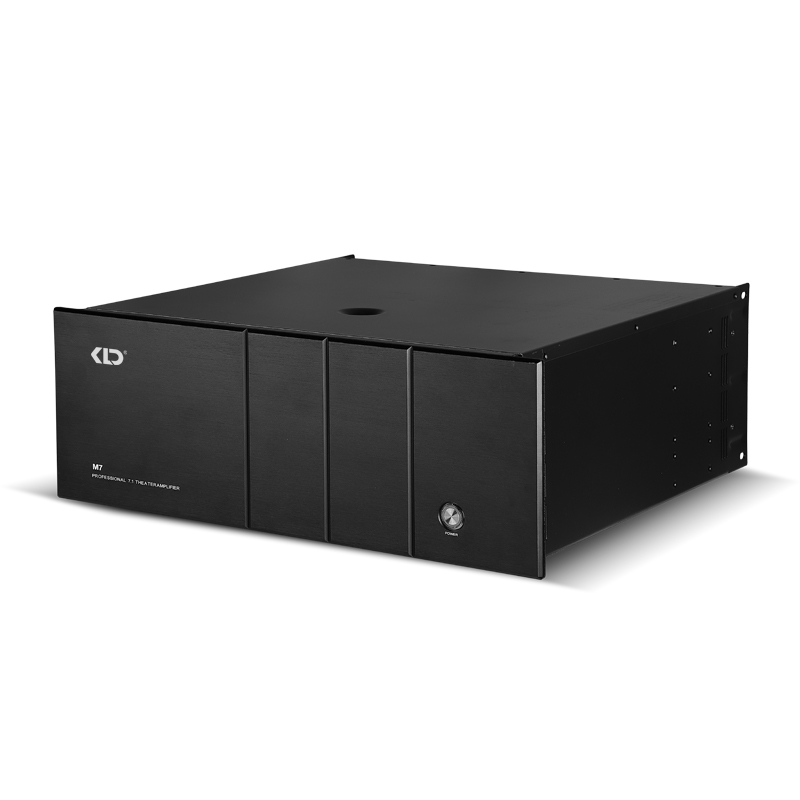

Model:M-7
8R: 400W x5 (main channel+side surround channel)+350W x2 (rear surround channel)+600W (sub channel)
4R: 600W x5 (main channel+side surround channel)+500W x2 (rear surround channel)+900W (sub channel)
Frequency response: 20-20KHz/± 0.5dB (1W)
Total harmonic distortion:< 0.08 (-3dB Power 8Ω/1KHz)
Signal to Noise Ratio:> 90dB
Input sensitivity, 1.0V (8 Ω)
Damping coefficient:> 300(20-500Hz/8Ω)
Conversion rate:> 20V/μS
Input impedance: 20K Ω/balanced, 10K Ω/unbalanced
Output type: AB
Protection: Soft start, short circuit, DC, over temperature, RF interference, voltage limit, power on/off mute, etc
Power supply requirements, AC220V/50Hz
Size: 483x132x430mm/Chassis installation inner width 440mm
Net weight:32Kg
