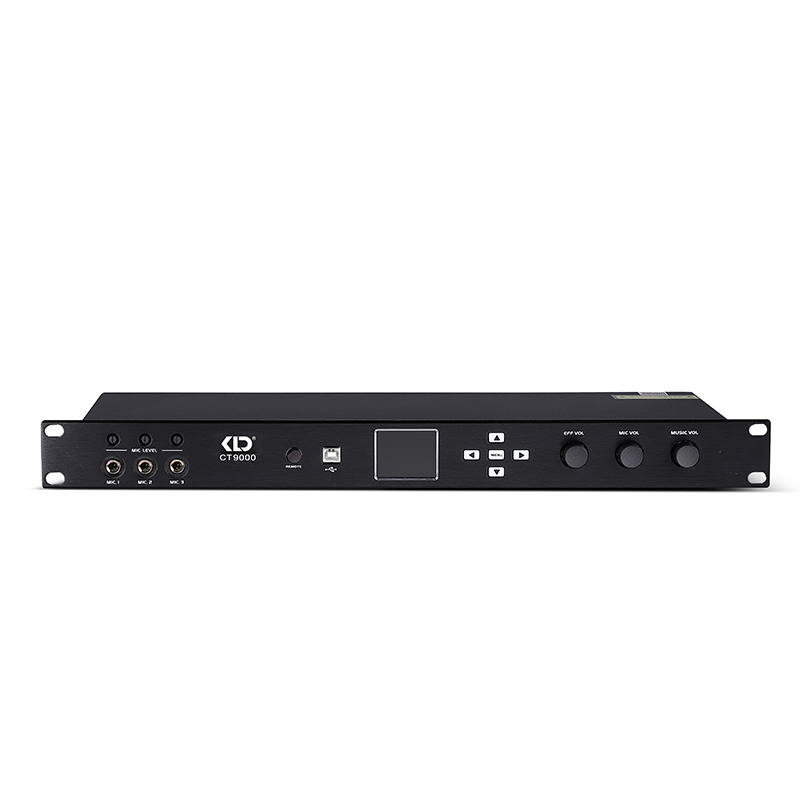

CT-9000

Technical Parameters

Output Channels: Main Output (Left/Right), Center, Subwoofer, Surround (Left/Right)

Signal-to-Noise Ratio: Microphone ≥ 85dB, Music ≥ 100dB

Distortion: Microphone < 0.01%, Music < 0.01%

Maximum Input Level: Microphone 400mV, Music 2V

Maximum Output Level: Microphone 3V, Music 3V

Sensitivity: Microphone 30mV, Music 300mV

Input Impedance (Ω): Microphone 10K unbalanced, Music 47K unbalanced

Output Impedance (Ω): 300Ω (balanced), 1K (unbalanced)

Channel Separation: 85dB

Howling Suppression Function: 4-level feedback suppression setting

Channel Parameters

Microphone: Dual independent 16-band PEQ + Low Pass + High Pass + Limiter,

Center frequency: 239 points from 20Hz to 20KHz, Bandwidth: 0.05 - 3oct, Step: 0.05oct, Gain: +10dB to -20dB

Music: 16-band PEQ + Low Pass + High Pass, Center frequency: 239 points from 20Hz to 20KHz,

Bandwidth: 0.05 - 3oct, Step: 0.05oct, Gain: +10dB to -20dB

Main Output (Left/Right): Signal mixing + Polarity + 5-band PEQ + Low Pass + High Pass + Compressor + Delay + Gain

Center: Signal mixing + Polarity + 5-band PEQ + Low Pass + High Pass + Compressor + Delay + Gain

Subwoofer: Signal mixing + Polarity + 5-band PEQ + Low Pass + High Pass + Compressor + Delay + Gain

Surround (Left/Right): Signal mixing + Polarity + 5-band PEQ + Low Pass + High Pass + Compressor + Delay + Gain
