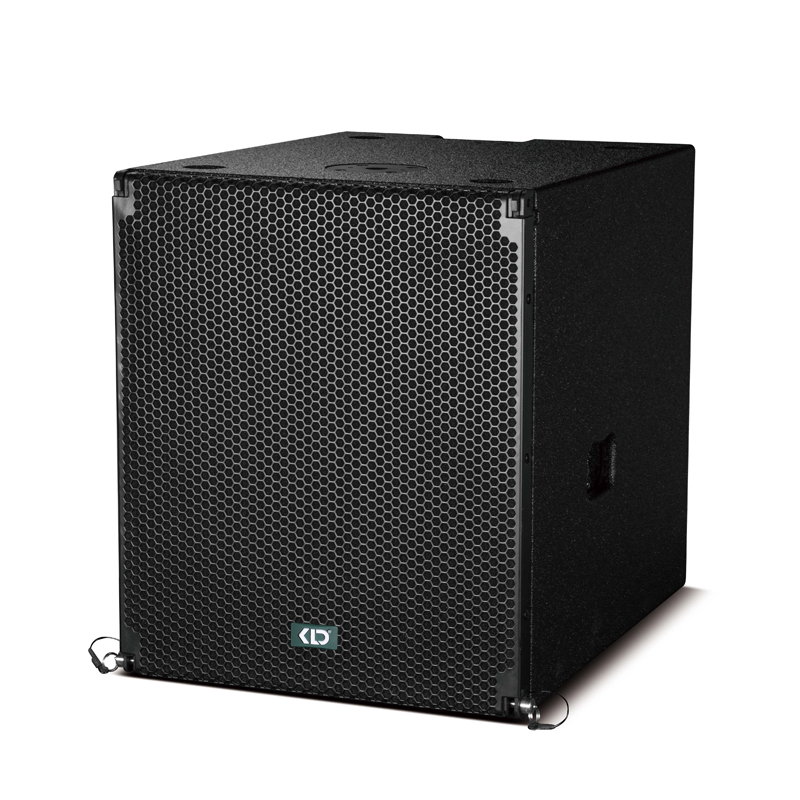

M-15BAMP

Product features

As an effective supplement to the M-5 line array system, the M-15BAMP is an active line array subwoofer. It features built-in 32-bit DSP chip

processing, 48kHz sampling rate, and 24-bit AD/DA conversion. The delay module of all output channels has a maximum delay time of

up to 680ms. It is equipped with a USB port and an RS485 interface, allowing for parameter adjustment through computer software. There are

30 built-in factory programs that can be stored and called independently, and it also has a password protection function to enhance device

security. Six user application operation modes are available.

Technical parameter

Product Model: M-15BAMP

Configuration: 1x15" Subwoofer Unit

AMP Mode: 4x1000W Active Module

Frequency Response: 40Hz - 300Hz

Rated Power: 600W AES (4x1000W Active Module)

Maximum Sound Pressure Level: 133dB

Sensitivity: 99dB

Impedance: 8Ω

Dimensions （WxHxD）: 435x513x550mm

Weight: 35kg
