Design feature
Pioneering installation of two 5-inch units and one 1.75-inch high-frequency compression driver into a cabinet with a height of only 300mm
and a width of 350mm. Designed in strict accordance with the line array principle, it achieves an unprecedented sound pressure-to-volume
ratio with extremely high efficiency, ensuring your success and efficiency in countless events. Whether used as the main expansion system
for events and celebrations or as a permanent installation in theaters, it performs excellently in both scenarios.
Technical parameter

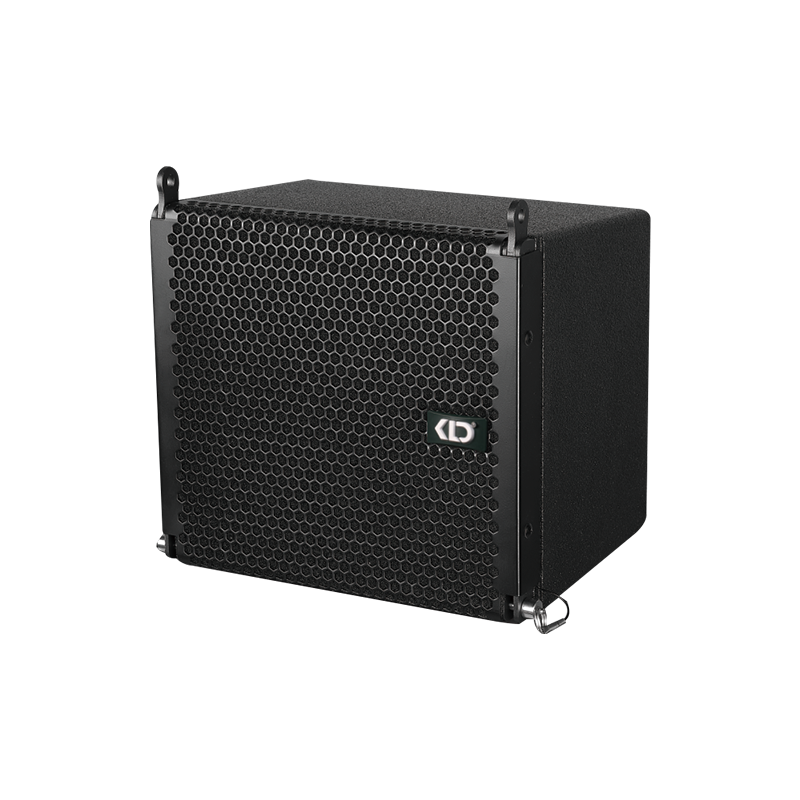

Product Model: M-5
Type: Two-way line array System
Configuration: LF: 2x5" ,HF: 1x1"
Frequency Response: 85Hz - 18KHz
Rated Power: 300W AES
Coverage Angle: 100°x8°(HxV)
Maximum Sound Pressure Level: 125dB
Sensitivity: 99dB
Impedance: 8Ω
Dimensions (WxHxD): 330x300x234mm
Weight: 10kg
