Technical parameter

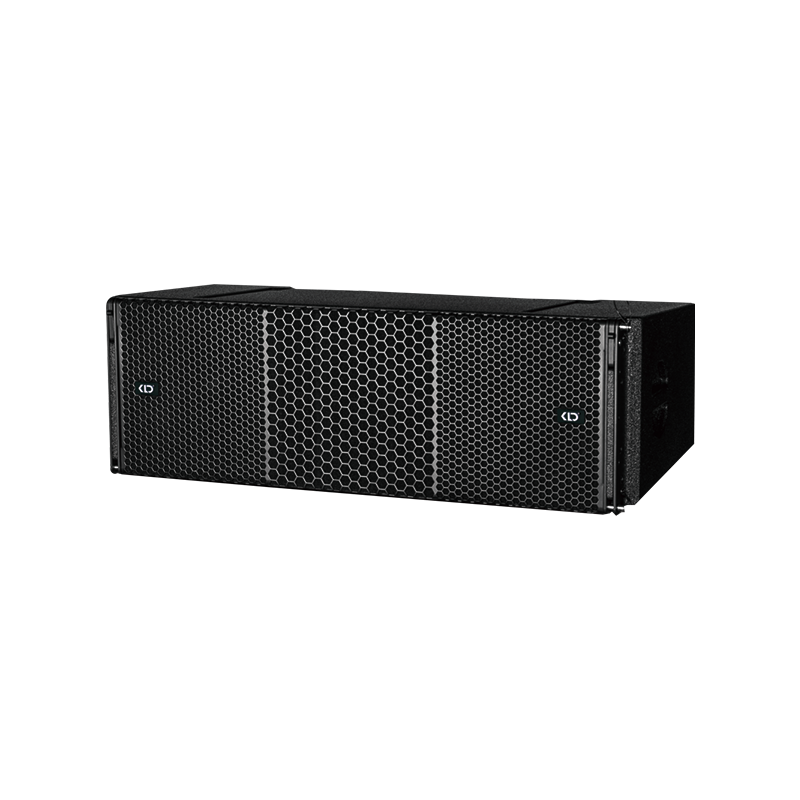

Model:G-212
Type: Dual 12-inch three-way line array speaker
Unit configuration: LF: 2x12'' low-frequency units,
MF: 1x10'' paper cone mid-frequency unit
HF: 2x3'' (75mm) compression units
Rated power: LF: 900W, MF: 380W, HF: 180W
Frequency response: 55Hz - 18KHz
Maximum sound pressure level: 136dB / 142dB (AES / PEAK)
Rated impedance: LF 8Ω / MF 8Ω + HF 16Ω
Coverage range (HxV): 90° x 8°
Input interface: 2 Neutrik 4-core sockets
Dimensions (WxHxD): 1100mm x 360mm x 525mm
Weight: 63kg
