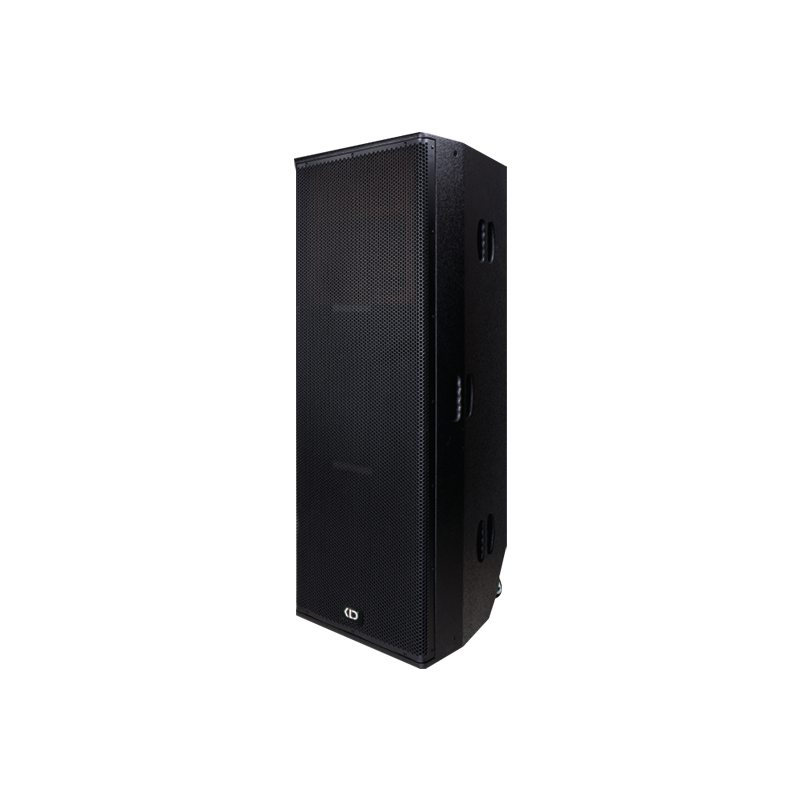

H-285 is a Two-way passive trapezoidal housing, dual 15” LF drivers and a 8” Ferrite compression driver mounted on a 100°×40°constant directivity horn. Two wheels on the bottom are convenient to carry and it’s suitable for outdoor shows
Specifications
Model: H-285
Type: 15-inch three-way four units, Low-frequency forward
Frequency response: 40Hz-19KHz
Rated power: 1300W
Maximum sound pressure SPL: 138dB
Sensitivity 1W/1M: 107dB
Nominal Impedance: 4Ω
Unit composition : LF 2x15"(100mm Voice coil）
MF 1x8" (50mm Voice coil）
HF 1x2.4"(65mm Voice coil）
Connector: 2Speakon NL4D
Dimensions(WxHxD): 545×1250×600mm
Net Weight: 72.5Kg
