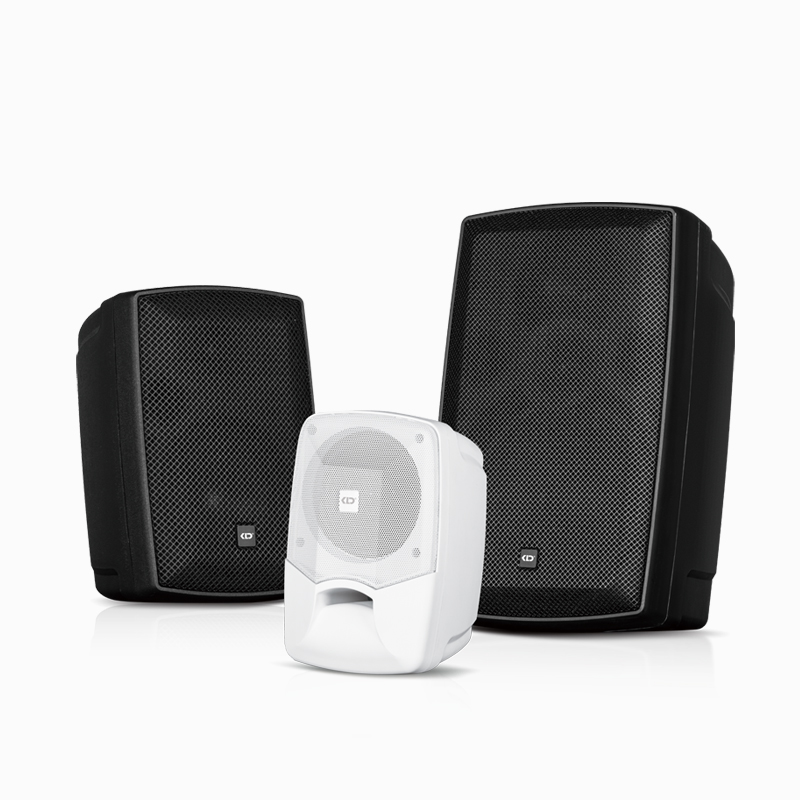

ID-SERIES

ID series multi-functional conference loudspeakers feature enclosures made of special engineered plastic. The crush-resistant metal grille protects internal drivers for enhanced durability, and the unit is eligible for waterproof and dustproof certification. Its stylish streamlined enclosure delivers an artistic look, blending seamlessly into a variety of sound reinforcement scenarios. With a front port design and outstanding acoustic specifications, it offers wide frequency coverage, high-fidelity performance, high SPL and ultra-low distortion to reproduce full, rich sound. It supports easy installation with adjustable sound coverage angle, ideal for conferences, schools, background music, public address and other applications.

Model: Id-5

Frequency Response: 100Hz–20KHz

Drivers: LF:1×5" (1" voice coil)

HF:1×1" (1" voice coil)

Power Rated: 50W

Sensitivity: 92dB

Max SPL: 109dB

Nominal Impedance: 8Ω

Dispersion: 90°H × 90°V

Enclosure Material: ABS

Enclosure Finish: Spray Paint

Grille: Painted Steel Grille

Connector: Phoenix Connector

Dimensions : 240×160×170mm

Net Weight: 2.2kg

Model: Id-6

Frequency Response: 80Hz–20KHz

Drivers: LF:1×6.5" (1" voice coil)

HF:1×1" (1" voice coil)

Power Rated: 80W

Sensitivity: 94dB

Max SPL: 113dB

Nominal Impedance: 8Ω

Dispersion: 90°H × 60°V

Enclosure Material: ABS

Enclosure Finish: Spray Paint

Grille: Painted Steel Grille

Connector: 2-Pin Terminal Block

Dimensions: 120×300×160mm

Net Weight: 3.4kg

Model: Id-10

Frequency Response: 40Hz–20KHz

Drivers: LF:1×10", MF:1×5", HF:1×1"

Power Rated: 200W

Sensitivity: 97dB

Max SPL: 123dB @ 1m

Nominal Impedance: 8Ω

Dispersion: 90°H × 60°V

Enclosure Material: ABS

Enclosure Finish: Spray Paint

Grille: Painted Steel Grille

Connector: 2-Pin Terminal Block

Dimensions: 285×480×300mm

Net Weight: 8.6kg
